Area camera · CH050 series

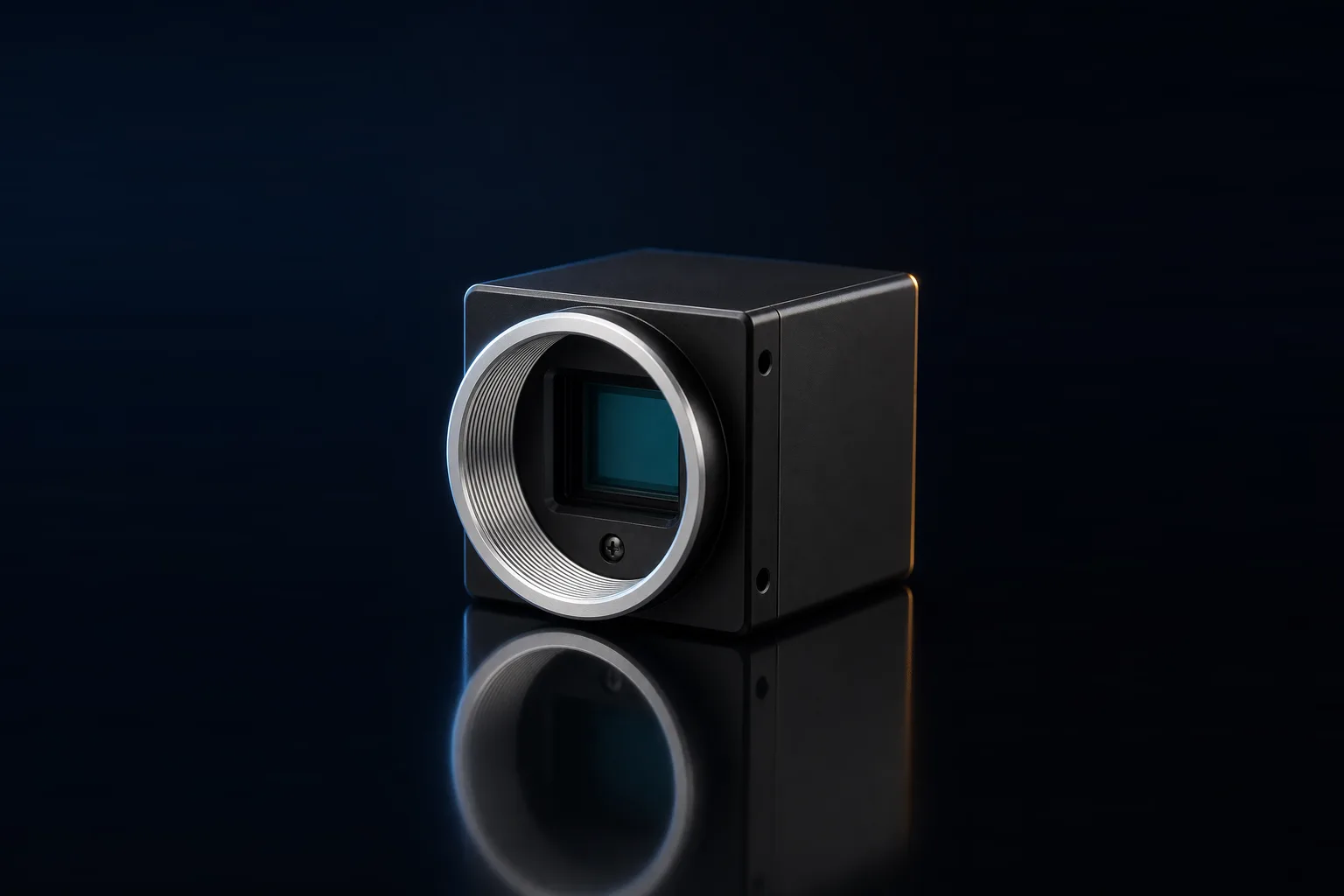

Hikrobot MV-CH050-60UM
2448 × 2048 pxStacked BSI79 fpsUSB 3.0, compatible with USB 2.0IP40
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Sensor format | 2/3″ |
| Resolution | 2448 × 2048 px |
| Pixel size | 3.45 × 3.45 µm |
| Maximum frame rate | 79 fps |
| Mono color | Mono |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Lens mount | C-mount |
| Ingress protection | IP40 |
| Dimensions | 29 × 29 × 30 mm |
| Weight | 80 g |
| Compatibility | USB3 Vision, GenICam |
