Area camera · CH101 series

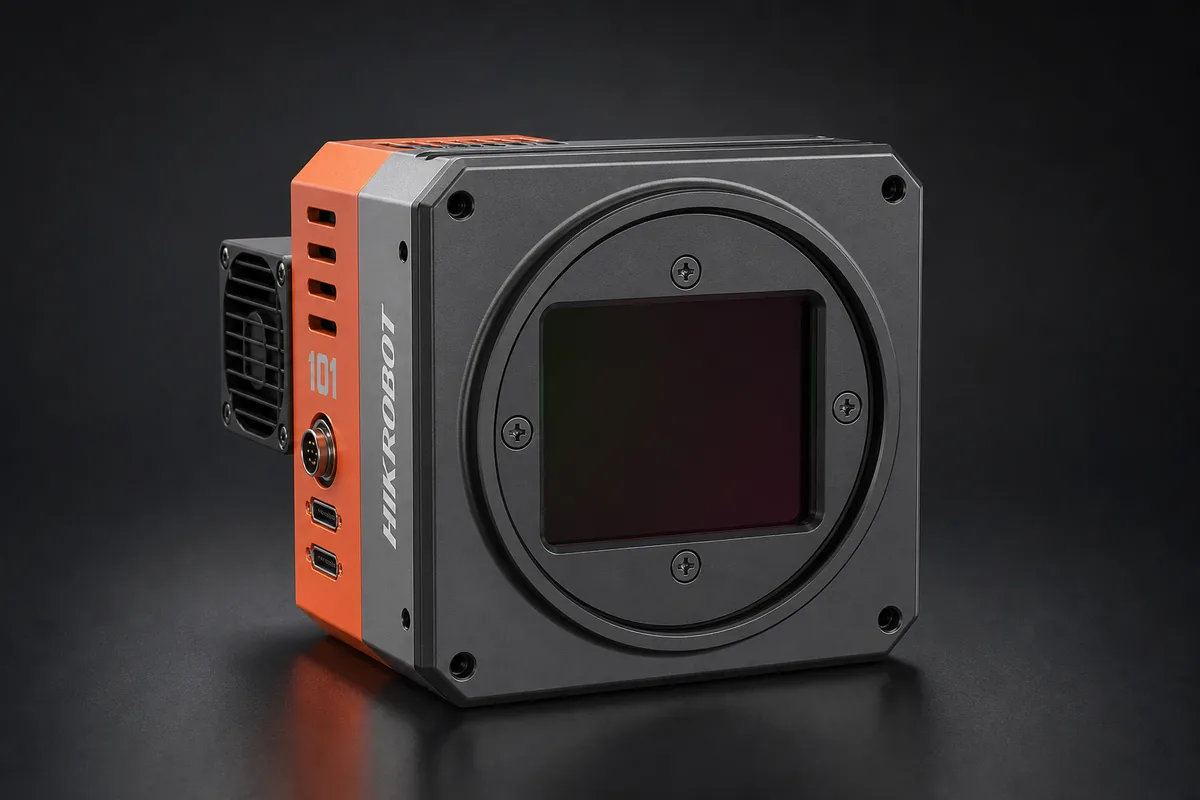

Hikrobot MV-CH1010-10CM-M72-NF
11648 × 8740 px8.1 fpsCamera Link with SDR interfaceIP40
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor format | 55 mm |
| Resolution | 11648 × 8740 px |
| Pixel size | 3.76 × 3.76 µm |
| Maximum frame rate | 8.1 fps |
| Mono color | Mono |
| Exposure time | 14 µs to 10 sec |
| Gain | 0 to 36 dB |
| SNR | 45 dB |
| Data interface | Camera Link with SDR interface |
| Lens mount | M72*0.75 |
| Ingress protection | IP40 |
| Operating temperature | 0 to 50 °C |
| Humidity | 20 to 95 % RH |
| Dimensions | 90 × 90 × 71.5 mm (with fan) |
| Sensor | Sony IMX461 |
| Data interface compatibility | Camera Link V2.0, GenICam |
| Dynamic range | 78 dB |
| Power supply fan | 12 to 24 VDC |
| Power supply tec | 24 VDC |
| Power consumption fan typ | 14 W |
| Power consumption tec cooling typ | 48 W |
| Flange back length | 19.55 mm |
