Area camera · CS series

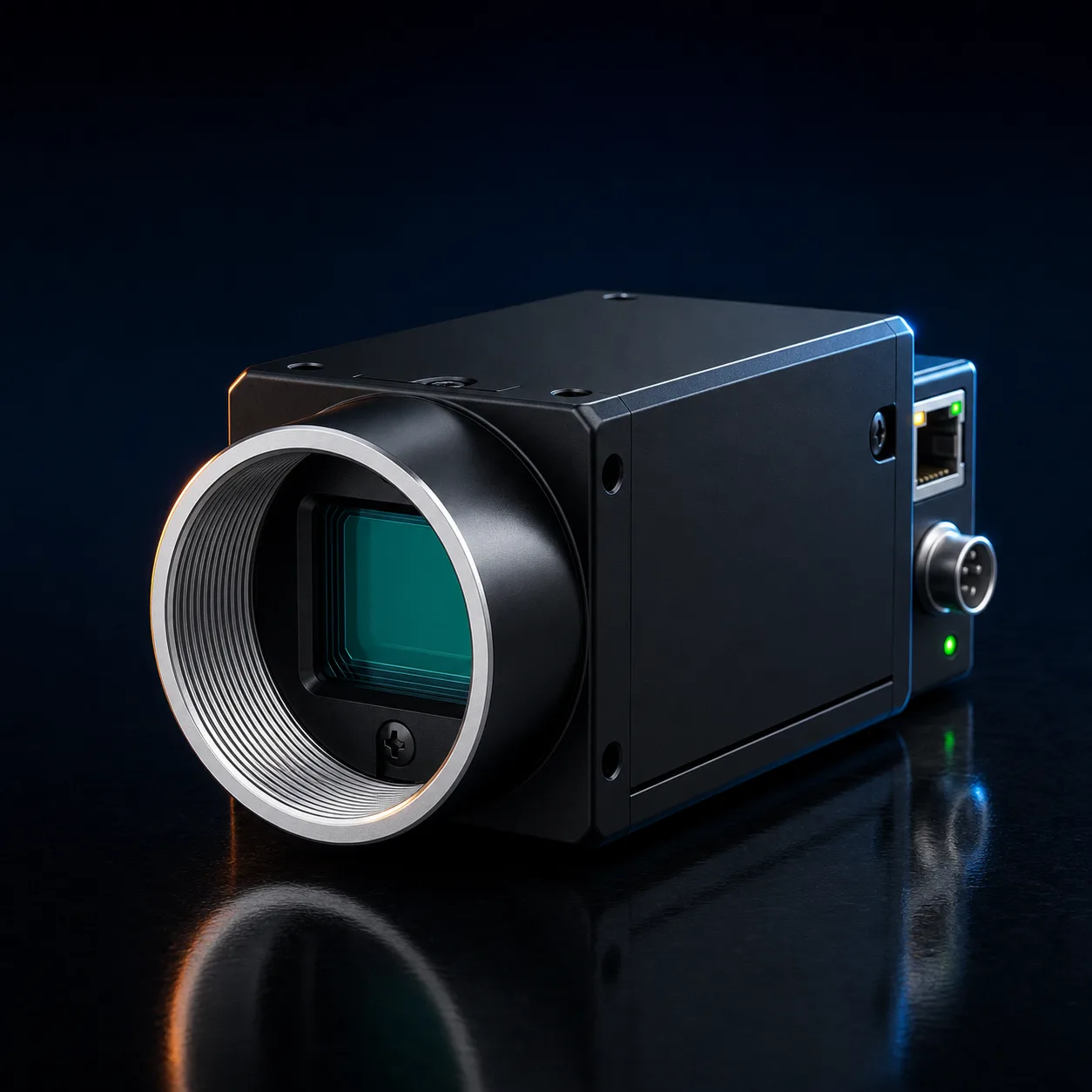

Hikrobot MV-CS050-10UM
2448 × 2048 pxSony IMX26460 fpsUSB3.0, compatible with USB2.0IP40
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS, global shutter |
| Sensor model | Sony IMX264 |
| Sensor format | 2/3″ |
| Resolution | 2448 × 2048 px |
| Pixel size | 3.45 × 3.45 um |
| Maximum frame rate | 60 fps |
| SNR | 40 dB |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector; opto-isolated input x1, opto-isolated output x1, bi-directional non-isolated I/O x1 |
| Lens mount | C-mount |
| Power supply | 9 to 24 VDC |
| Power consumption | 3.2 W @ 5 VDC |
| Ingress protection | IP40 |
| Operating temperature | -30 to 60 C |
| Storage temperature | -30 to 70 C |
| Humidity | 20 to 95 % RH |
| Dimensions | 29 × 29 × 30 mm |
| Weight | 80 g |
| Dynamic range | 71 dB |
