USB 3.0 area scan cameras Hikrobot

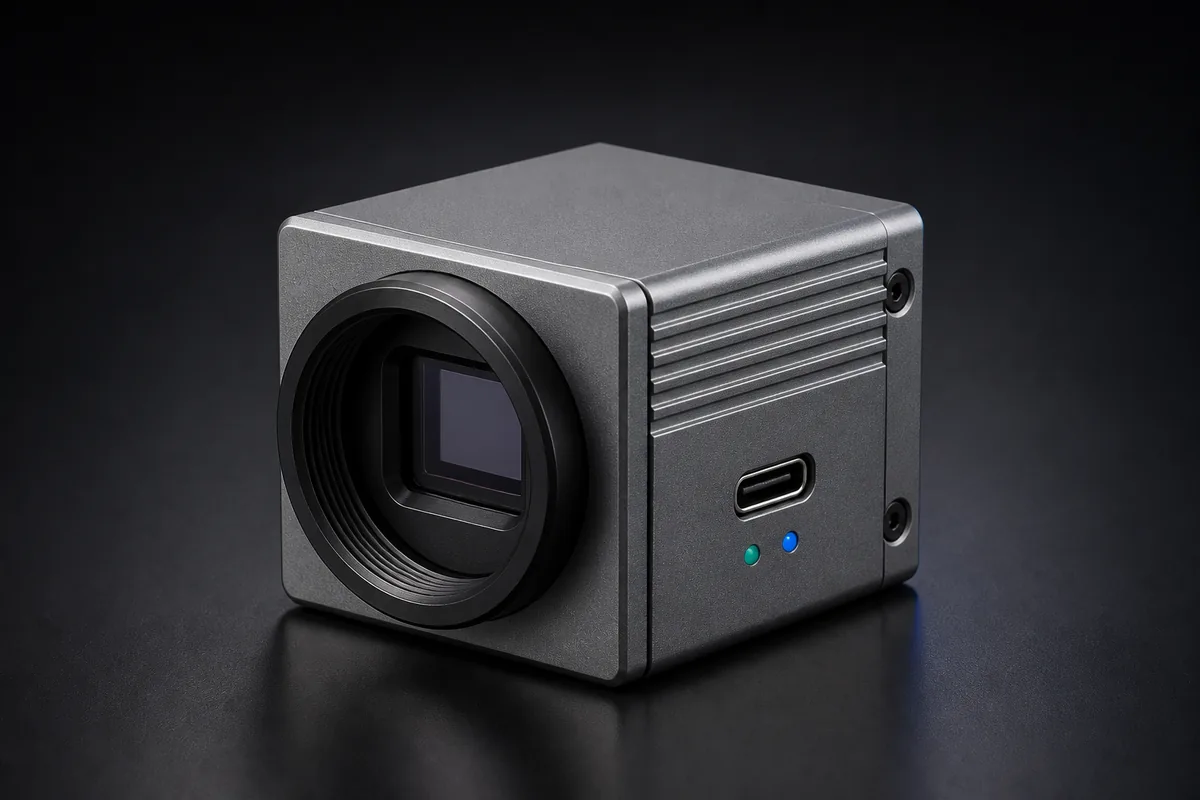

Hikrobot area scan cameras with a USB 3.0 interface: bus-powered, minimal wiring, cable length up to 5 m (beyond that use active cables or repeaters).

ModelResolutionFrame rateSensorpixel size
MV-CH120-60UCArea camera4096 × 300030.7 fps1.1″—
MV-CU020-90UMArea camera2048 × 1200 px150.2 fps1/1.7″4 × 4 µm
MV-CH123-10UCArea camera4096 × 3000 px31.5 fps1/1.1″2.74 × 2.74 um
MV-CA016-10UCArea camera1440 × 1080 px249.1 fps1/2.9″3.45 × 3.45 μm
MV-CE013-80UMArea camera1280 × 1024 px148 fps1/2.7″—
MV-CE050-30UCArea camera2592 × 1944 px44.7 fps1/2.5″—
MV-CE060-10UMArea camera3072 × 2048 px42.7 fps1/1.8″—
MV-CS004-10UMArea camera720 × 540 px526.5 fps1/2.9″—
MV-CS016-10UMArea camera1440 × 1080 px249.1 fps1/2.9″3.45 × 3.45 µm
MV-CS020-10UMArea camera1624 × 1240 px—1/1.7″4.5 × 4.5 µm
MV-CS050-10UMArea camera2448 × 2048 px60 fps2/3″3.45 × 3.45 um
MV-CB013-A0UM-SArea camera1280 × 1024 px201 fps1/2″—
MV-CB013-A0UC-SArea camera1280 × 1024 px201 fps1/2″—
MV-CB016-10UC-C V4.0Area camera1440 × 1080 px165.4 fps1/2.9″—
MV-CB020-60UM-CArea camera1624 × 1240 px179.9 fps1/2.53″—
MV-CB020-60UC-CArea camera1624 × 1240 px179.9 fps1/2.53″—
MV-CB050-60UM-C-FArea camera2448 × 2048 px—2/3″3.45 × 3.45 µm
MV-CB050-60UC-C-FArea camera2448 × 2048 px—2/3″3.45 × 3.45 µm
MV-CB120-10UM-C V4.0Area camera4032 × 3036 px30 fps1/1.7″—
MV-CB120-10UC-C V4.0Area camera4032 × 3036 px30 fps1/1.7″1.85 × 1.85 µm
MV-CH089-10UMArea camera4096 × 2160 px32 fps1″3.45 × 3.45 µm
MV-CH100-60UMArea camera4096 × 2460 px36 fps1″3.45 × 3.45 µm
MV-CA050-12UCArea camera2448 × 2048 px47 mono / 60 color fps2/3″3.45 × 3.45 µm
MV-CE060-10UCArea camera3072 × 2048 px42.7 fps1/1.8″—
MV-CE200-10UMArea camera5472 × 3648 px19.2 fps1″—
MV-CU013-80UMArea camera1280 × 1024 px240.4 fps1/2.7″4.0 × 4.0 µm
MV-CH120-10UCArea camera4096 × 3000 px30.5 fps1.1″3.45 × 3.45 µm
MV-CH050-60UMArea camera2448 × 2048 px79 fps2/3″3.45 × 3.45 µm
MV-CT0MU0016/GArea camera1440 × 1080 px249 fps @ 1440 × 1080 Mono 81/2.9″3.45 × 3.45 μm
MV-CT0CU0016/GArea camera1440 × 1080 px249 fps @ 1440 × 1080 Bayer GB 81/2.9″3.45 × 3.45 μm
MV-CT0MU0020/GArea camera1624 × 1240 px180.1 fps @ 1624 × 1240 Mono 81/2.53″3.45 × 3.45 μm
MV-CT0CU0020/GArea camera1624 × 1240 px180.1 fps @ 1624 × 1240 Bayer GB 81/2.53″3.45 × 3.45 μm
MV-CT0MU0032/GArea camera2048 × 1536 px104.8 fps @ 2048 × 1536 Mono 81/1.8″3.45 × 3.45 μm
MV-CT1MU0032/GArea camera2048 × 1536 px104.8 fps @ 2048 × 1536 Mono 81/1.8″3.45 × 3.45 μm
MV-CT2MU0032/GArea camera2048 × 1536 px104.8 fps @ 2048 × 1536 Mono 81/1.8″3.45 × 3.45 μm
MV-CT0CU0032/GArea camera2048 × 1536 px104.8 fps @ 2048 × 1536 Bayer GR 81/1.8″3.45 × 3.45 μm
MV-CT1CU0032/GArea camera2048 × 1536 px104.8 fps @ 2048 × 1536 Bayer GR 81/1.8″3.45 × 3.45 μm
MV-CT2CU0032/GArea camera2048 × 1536 px104.8 fps @ 2048 × 1536 Bayer GR 81/1.8″3.45 × 3.45 μm
MV-CT0MU0050/GArea camera2448 × 2048 px80 fps @ 2448 × 2048 Mono 82/3″3.45 × 3.45 μm
MV-CT1MU0050/GArea camera2448 × 2048 px80 fps @ 2448 × 2048 Mono 82/3″3.45 × 3.45 μm
MV-CT2MU0050/GArea camera2448 × 2048 px80 fps @ 2448 × 2048 Mono 82/3″3.45 × 3.45 μm
MV-CT0CU0050/GArea camera2448 × 2048 px80 fps @ 2448 × 2048 Bayer GR 82/3″3.45 × 3.45 μm
MV-CT1CU0050/GArea camera2448 × 2048 px80 fps @ 2448 × 2048 Bayer GR 82/3″3.45 × 3.45 μm
MV-CT2CU0050/GArea camera2448 × 2048 px80 fps @ 2448 × 2048 Bayer GR 82/3″3.45 × 3.45 μm
MV-CT0MU0060/RArea camera3072 × 2048 px60.9 fps @ 3072 × 2048 Mono 81/1.8″2.4 × 2.4 μm
MV-CT0CU0060/RArea camera3072 × 2048 px60.9 fps @ 3072 × 2048 Bayer RG 81/1.8″2.4 × 2.4 μm
MV-CT0MU0089/GArea camera4096 × 2160 px42 fps @ 4096 × 2160 Mono 81″3.45 × 3.45 μm
MV-CT1MU0089/GArea camera4096 × 2160 px42 fps @ 4096 × 2160 Mono 81″3.45 × 3.45 μm
MV-CT2MU0089/GArea camera4096 × 2160 px42 fps @ 4096 × 2160 Mono 81″3.45 × 3.45 μm
MV-CT0CU0089/GArea camera4096 × 2160 px42 fps @ 4096 × 2160 Bayer GB 81″3.45 × 3.45 μm
MV-CT1CU0089/GArea camera4096 × 2160 px42 fps @ 4096 × 2160 Bayer GB 81″3.45 × 3.45 μm
MV-CT2CU0089/GArea camera4096 × 2160 px42 fps @ 4096 × 2160 Bayer GB 81″3.45 × 3.45 μm
MV-CT0MU0120/GArea camera4096 × 3000 px31 fps @ 4096 × 3000 Mono 81.1″3.45 × 3.45 μm
MV-CT1MU0120/GArea camera4096 × 3000 px31 fps @ 4096 × 3000 Mono 81.1″3.45 × 3.45 μm
MV-CT2MU0120/GArea camera4096 × 3000 px31 fps @ 4096 × 3000 Mono 81.1″3.45 × 3.45 μm
MV-CT0CU0120/GArea camera4096 × 3000 px31 fps @ 4096 × 3000 Bayer GB 81.1″3.45 × 3.45 μm
MV-CT1CU0120/GArea camera4096 × 3000 px31 fps @ 4096 × 3000 Bayer GB 81.1″3.45 × 3.45 μm
MV-CT2CU0120/GArea camera4096 × 3000 px31 fps @ 4096 × 3000 Bayer GB 81.1″3.45 × 3.45 μm
MV-CT0MU0200/RArea camera5472 × 3648 px19.3 fps @ 5472 × 3648 Mono 81″2.4 × 2.4 μm
MV-CT0CU0200/RArea camera5472 × 3648 px19.3 fps @ 5472 × 3648 Bayer GB 81″2.4 × 2.4 μm
MV-CE120-10UM V2.0Area camera4000 × 303631.9 fps @4000 × 30361/1.7″1.85 μm × 1.85 μm
MV-CE120-10UC V2.0Area camera4000 × 303631.9 fps @4000 × 30361/1.7″1.85 μm × 1.85 μm
MV-CU013-80UCArea camera1280 × 1024240.4 fps @1280 × 1024 Bayer BG 81/2.7″4.0 µm × 4.0 µm
MV-CU013-A0UMArea camera1280 × 1024201.4 fps @ 1280 × 1024 Mono 81/2″4.8 μm × 4.8 μm
MV-CU013-A0UCArea camera1280 × 1024201.4 fps @ 1280 × 1024 Bayer GB 81/2″4.8 μm × 4.8 μm
MV-CU013-A1UCArea camera1280 × 1024210 fps @ 1280 × 1024 Bayer GB 81/2″4.8 μm × 4.8 μm
MV-CU020-90UCArea camera2048 × 1200150.2 fps @ 2048 × 1200 Bayer GB 81/1.7″4 µm x 4 µm
MV-CU050-60UMArea camera2592 × 194448.2 fps @2592 × 1944 Mono 81/2.5″2.2 μm × 2.2 μm
MV-CU050-90UMArea camera2600 × 216059.8 fps @2600 × 2160 Mono 81/2″2.5 μm × 2.5 μm
MV-CU050-90UCArea camera2600 × 216059.8 fps @2600 × 2160 Bayer BG 81/2″2.5 μm × 2.5 μm
MV-CU060-10UCArea camera3072 × 204859.6 fps @3072 × 2048 Bayer RG 81/1.8″2.4 μm × 2.4 μm
MV-CU060-10UMArea camera3072 × 204859.6 fps @3072 × 2048 Mono 81/1.8″2.4 μm × 2.4 μm
MV-CU120-10UCArea camera4024 × 303629.2 fps @4024 × 3036 Bayer RG 81/1.7″1.85 μm × 1.85 μm
MV-CU120-10UMArea camera4024 × 303629.2 fps @4024 × 3036 Mono 81/1.7″1.85 μm × 1.85 μm
MV-CU200-20UMArea camera5120 × 384018 fps @5120 × 3840 Mono 81/1.8″1.4 μm × 1.4 μm
MV-CU200-20UCArea camera5120 × 384018 fps @5120 × 3840 Bayer GR 81/1.9″1.4 μm × 1.4 μm
MV-CA003-21UCArea camera640 × 480814.5 fps @ 640 × 4801/4″4.8 μm × 4.8 μm
MV-CA004-10UMArea camera720 × 540526.5 fps @ 720 × 5401/2.9″6.9 µm × 6.9 µm
MV-CA004-10UCArea camera720 × 540526.5 fps @ 720 × 5401/2.9″6.9 µm × 6.9 µm
MV-CA013-21UMArea camera1280 × 1024210 fps @ 1280 × 10241/2″4.8 μm × 4.8 μm
MV-CA013-A0UCArea camera1280 × 1024201 fps @ 1280 × 10241/2″4.8 μm × 4.8 μm
MV-CA013-A0UMArea camera1280 × 1024201 fps @ 1280 × 10241/2″4.8 μm × 4.8 μm
MV-CA016-10UMArea camera1440 × 1080249.1 fps @ 1440 × 1080 mono 81/2.9″3.45 μm × 3.45 μm
MV-CA020-10UM V2.0Area camera1624 × 124089.1 fps @ 1624 × 12401/1.7″4.5 μm × 4.5 μm
MV-CA020-10UC V2.0Area camera1624 × 124089.1 fps @ 1624 × 12401/1.7″4.5 μm × 4.5 μm
MV-CA023-10UMArea camera1920 × 120041 fps @ 1920 × 12001/1.2″5.86 μm × 5.86 μm
MV-CA023-10UCArea camera1920 × 120040 fps @ 1920 × 12001/1.2″5.86 μm × 5.86 μm
MV-CA050-12UMArea camera2448 × 204847 fps @ 2448 × 20482/3″3.45 μm × 3.45 μm
MV-CA050-20UMArea camera2592 × 204871.8 fps @ 2592 × 20481″4.8 µm × 4.8 µm
MV-CS004-10UCArea camera720 × 540526.5 fps @ 720 × 540 Bayer RG 81/2.9″6.9 µm × 6.9 µm
MV-CS004-10UM V5.0Area camera720 × 540525.5 fps @ 720 × 540 Mono 81/2.9″6.9 µm × 6.9 µm
MV-CS004-10UC V5.0Area camera720 × 540530 fps @ 720 × 540 Bayer RG 81/2.9″6.9 µm × 6.9 µm
MV-CS013-80UCArea camera1280 × 1024240.4 fps @1280 × 1024 Bayer BG 81/2.7″4 µm × 4 µm
MV-CS013-80UMArea camera1280 × 1024240.4 fps @1280 × 1024 Mono 81/2.7″4 µm × 4 µm
MV-CS016-10UCArea camera1440 × 1080249.1 fps @ 1440 × 1080 Bayer RG 81/2.9″3.45 μm × 3.45 μm
MV-CS016-10UM V5.0Area camera1440 × 1080249.1 fps @ 1440 × 1080 Mono 81/2.9″3.45 μm × 3.45 μm
MV-CS016-10UC V5.0Area camera1440 × 1080249.1 fps @ 1440 × 1080 Bayer RG 81/2.9″3.45 μm × 3.45 μm
MV-CS020-10UCArea camera1624 × 124090 fps @ 1624 × 1240 Bayer RG 81/1.7″4.5 μm × 4.5 μm
MV-CS020-61UM V5.0Area camera1624 × 124099.6 fps @ 1624 × 1240 Mono 81/1.7″4.5 μm × 4.5 μm
MV-CS020-61UC V5.0Area camera1624 × 124099.6 fps @ 1624 × 1240 Bayer GR 81/1.7″4.5 μm × 4.5 μm
MV-CS023-10UMArea camera1920 × 120041 fps @ 1920 × 1200 Mono 81/1.2″5.86 μm × 5.86 μm
MV-CS023-10UCArea camera1920 × 120041 fps @ 1920 × 1200 Bayer RG 81/1.2″5.86 μm × 5.86 μm
MV-CS040-A0UMArea camera2048 × 204890.1 fps @ 2048 × 2048 Mono 81″5.5 μm × 5.5 μm
MV-CS040-A0UCArea camera2048 × 204890.1 fps @ 2048 × 2048 Bayer GB 81″5.5 μm × 5.5 μm
MV-CS050-10UCArea camera2448 × 204860 fps @ 2448 × 2048 Bayer RG 82/3″3.45 μm × 3.45 μm
MV-CS050-60UM V2.0Area camera2448 × 204860 fps @2448 × 2048 Mono 82/3″3.45 μm × 3.45 μm
MV-CS050-60UC V2.0Area camera2448 × 204860 fps @2448 × 2048 Bayer GR 82/3″3.45 μm × 3.45 μm
MV-CS050-60UM V5.0Area camera2448 × 204860 fps @ 2448 × 2048 Mono 82/3″3.45 μm × 3.45 μm
MV-CS050-60UC V5.0Area camera2448 × 204860 fps @ 2448 × 2048 Bayer GR 82/3″3.45 μm × 3.45 μm
MV-CS060-10UM V5.0Area camera3072 × 204860.9 fps @ 3072 × 2048 Mono 81/1.8″2.4 μm × 2.4 μm
MV-CS060-10UC V5.0Area camera3072 × 204860.9 fps @ 3072 × 2048 Bayer RG 81/1.8″2.4 μm × 2.4 μm
MV-CS050-80UM V5.0Area camera2448 × 204880 fps @ 2448 × 2048 Mono 82/3″3.45 μm × 3.45 μm
MV-CS050-80UC V5.0Area camera2448 × 204880 fps @ 2448 × 2048 Bayer BG 82/3″3.45 μm × 3.45 μm
MV-CS060-10UM-PROArea camera3072 × 204860.9 fps @ 3072 × 2048 Mono 81/1.8″2.4 μm × 2.4 μm
MV-CS060-10UC-PROArea camera3072 × 204860.9 fps @ 3072 × 2048 Bayer RG 81/1.8″2.4 μm × 2.4 μm
MV-CS120-10UM V5.0Area camera4024 × 303629.4 fps @ 4024 × 3036 Mono 81/1.7″1.85 μm × 1.85 μm
MV-CS120-10UC V5.0Area camera4024 × 303629.4 fps @ 4024 × 3036 Bayer RG 81/1.7″1.85 μm × 1.85 μm
MV-CS200-10UCArea camera5472 × 364819.2 fps @ 5472 × 3648 Bayer GB 81″2.4 µm × 2.4 µm
MV-CS200-10UMArea camera5472 × 364819.2 fps @ 5472 × 3648 Mono 81″2.4 µm × 2.4 µm
MV-CS200-10UC V5.0Area camera5472 × 364819.2 fps @ 5472 × 3648 Bayer GB 81″2.4 µm × 2.4 µm
MV-CS200-10UM V5.0Area camera5472 × 364819.2 fps @ 5472 × 3648 Mono 81″2.4 µm × 2.4 µm
MV-CH050-10UC V4.0Area camera2448 × 204874.1 fps @ 2448 × 2048 Bayer RG 82/3″3.45 μm × 3.45 μm
MV-CH050-10UM V4.0Area camera2448 × 204874.1 fps @ 2448 × 2048 Mono 82/3″3.45 μm × 3.45 μm
MV-CH050-10UMArea camera2448 × 204874 fps @2448 × 2048 Mono 82/3″3.45 μm × 3.45 μm
MV-CH050-60UCArea camera2448 × 204879 fps @ 2448 × 2048 Bayer GR 82/3″3.45 μm × 3.45 μm
MV-CH089-10UCArea camera4096 × 216032 fps @ 4096 × 2160 Bayer GR 81″3.45 µm × 3.45 µm
MV-CH100-60UCArea camera4096 × 246036 fps @ 4096 × 2460 Bayer GR 81″3.45 µm × 3.45 µm
MV-CH120-10UM V4.0Area camera4096 × 300030.5 fps @ 4096 × 3000 Mono 81.1″3.45 μm × 3.45 μm
MV-CH120-10UC V4.0Area camera4096 × 300030.5 fps @ 4096 × 3000 Bayer RG 81.1″3.45 μm × 3.45 μm
MV-CH120-10UMArea camera4096 × 300023.1 fps @ 4096 × 30001.1″3.45 μm × 3.45 μm
MV-CH120-11UMArea camera4096 × 300030.3 fps @ 4096 × 3000 Mono 81.1″3.45 μm × 3.45 μm
MV-CH120-11UCArea camera4096 × 300030.3 fps @ 4096 × 3000 Bayer RG 81.1″3.45 μm × 3.45 μm
MV-CH120-20UC V4.0Area camera4096 × 307228 fps @ 4096 × 3072 Bayer RG 81″3.2 µm × 3.2 µm
MV-CH120-20UM V4.0Area camera4096 × 307228 fps @ 4096 × 3072 Mono 81″3.2 µm × 3.2 µm
MV-CH120-60UMArea camera4096 × 300030.7 fps @ 4096 × 3000 Mono 81.1″3.45 μm × 3.45 μm
MV-CH120-60UC V5.0Area camera4096 × 300031.3 fps @ 4096 × 3000 Bayer GB 81.1″3.45 μm × 3.45 μm
MV-CH120-60UM V5.0Area camera4096 × 300031.3 fps @ 4096 × 3000 Mono 81.1″3.45 μm × 3.45 μm
MV-CH123-10UMArea camera4096 × 300031.5 fps @ 4096 × 3000 Mono 81/1.1″2.74 μm × 2.74 μm
MV-CH140-60UMArea camera4708 × 282427 fps @ 4708 × 2824 Mono 81″3 μm × 3 μm
MV-CH250-60UMArea camera5120 × 512014.8 fps @ 5120 × 5120 Mono 812.6 mm × 12.6 mm2.44 µm × 2.44 µm
MV-CH250-60UCArea camera5120 × 512014.8 fps @ 5120 × 5120 Bayer BG 812.6 mm × 12.6 mm2.44 µm × 2.44 µm
MV-CH250-90UM V4.0Area camera5120 × 512014 fps @5120 × 5120 Mono 81.1″2.5 µm × 2.5 µm
MV-CH250-90UC V4.0Area camera5120 × 512014 fps @5120 × 5120 Bayer BG 81.1″2.5 µm × 2.5 µm
MV-CH250-90UN V4.0Area camera5120 × 512014 fps @5120 × 5120 Mono 81.1″2.5 µm × 2.5 µm
MV-CH120-60VMArea camera4096 × 300060.2 fps @ 4096 × 3000 Mono 81.1″3.45 μm × 3.45 μm
MV-CH120-60VCArea camera4096 × 300030 fps @ 4096 × 3000 Bayer GB 81.1″3.45 μm × 3.45 μm
MV-CH250-90VMArea camera5120 × 512030 fps @5120 × 5120 Mono 81.1″2.5 μm × 2.5 μm
MV-CH250-90VCArea camera5120 × 512030 fps @5120 × 5120 Bayer BG 81.1″2.5 μm × 2.5 μm
MV-CB013-A0UC-CBoard level area camera1280 × 1024201 fps @1280 × 10241/2″4.8 μm × 4.8 μm
MV-CB013-A0UM-BBoard level area camera1280 × 1024201 fps @1280 × 10241/2″4.8 μm × 4.8 μm
MV-CB013-A0UM-CBoard level area camera1280 × 1024201 fps @1280 × 10241/2″4.8 μm × 4.8 μm
MV-CB016-10UC-B V4.0Board level area camera1440 × 1080165.4 fps @1440 × 1080 249.1 fps @1440 × 10801/2.9″3.45 μm × 3.45 μm
MV-CB016-10UM-B V4.0Board level area camera1440 × 1080165.4 fps @1440 × 1080 Mono 8 249.1 fps @1440 × 1080 Mono 81/2.9″3.45 μm × 3.45 μm
MV-CB016-10UC-S V4.0Board level area camera1440 × 1080165.4 fps @1440 × 1080 249.1 fps @1440 × 10801/2.9″3.45 μm × 3.45 μm
MV-CB016-10UM-S V4.0Board level area camera1440 × 1080165.4 fps @1440 × 1080 Mono 8 249.1 fps @1440 × 1080 Mono 81/2.9″3.45 μm × 3.45 μm
MV-CB016-10UM-C V4.0Board level area camera1440 × 1080165.4 fps @1440 × 1080 Mono 8 249.1 fps @1440 × 1080 Mono 81/2.9″3.45 μm × 3.45 μm
MV-CB020-60UC-BBoard level area camera1624 × 1240179.9 fps @ 1624 × 1240 Bayer GB 81/2.53″3.45 μm × 3.45 μm
MV-CB020-60UC-SBoard level area camera1624 × 1240179.9 fps @ 1624 × 1240 Bayer GB 81/2.53″3.45 μm × 3.45 μm
MV-CB020-60UM-BBoard level area camera1624 × 1240179.9 fps @ 1624 × 1240 Mono 81/2.53″3.45 μm × 3.45 μm
MV-CB020-60UM-SBoard level area camera1624 × 1240179.9 fps @ 1624 × 1240 Mono 81/2.53″3.45 μm × 3.45 μm
MV-CB020-61UM-S-FBoard level area camera1624 × 124099 fps @ 1624 × 1240 Mono 81/1.7″4.5 µm × 4.5 µm
MV-CB020-61UM-C-FBoard level area camera1624 × 124099 fps @ 1624 × 1240 Mono 81/1.7″4.5 µm × 4.5 µm
MV-CB020-61UM-B-FBoard level area camera1624 × 124099 fps @ 1624 × 1240 Mono 81/1.7″4.5 µm × 4.5 µm
MV-CB050-11UC-CBoard level area camera2448 × 204860 fps @2448 × 20482/3″3.45 μm × 3.45 μm
MV-CB060-10UC-B V4.0Board level area camera3072 × 204860.9 fps @3072 × 2048 Bayer RG 81/1.8″2.4 μm × 2.4 μm
MV-CB060-10UC-C V4.0Board level area camera3072 × 204860.9 fps @3072 × 2048 Bayer RG 81/1.8″2.4 μm × 2.4 μm
MV-CB060-10UC-S V4.0Board level area camera3072 × 204860.9 fps @3072 × 2048 Bayer RG 81/1.8″2.4 μm × 2.4 μm
MV-CB060-10UM-B V4.0Board level area camera3072 × 204860.9 fps @3072 × 2048 Mono 81/1.8″2.4 μm × 2.4 μm
MV-CB060-10UM-C V4.0Board level area camera3072 × 204860.9 fps @3072 × 2048 Mono 81/1.8″2.4 μm × 2.4 μm
MV-CB060-10UM-S V4.0Board level area camera3072 × 204860.9 fps @3072 × 2048 Mono 81/1.8″2.4 μm × 2.4 μm
MV-CB120-10UM-B V4.0Board level area camera4032 × 303630 fps @4032 × 30361/1.7″1.85 µm × 1.85 µm
MV-CB120-10UM-S V4.0Board level area camera4032 × 303630 fps @4032 × 30361/1.7″1.85 µm × 1.85 µm
MV-CB120-10UC-B V4.0Board level area camera4032 × 303630 fps @4032 × 30361/1.7″1.85 µm × 1.85 µm
MV-CB120-10UC-S V4.0Board level area camera4032 × 303630 fps @4032 × 30361/1.7″1.85 µm × 1.85 µm
